Model

2472 OB FIRE BOAT LC

2472 OB Fire Boat LC: Versatility for Smaller Departments

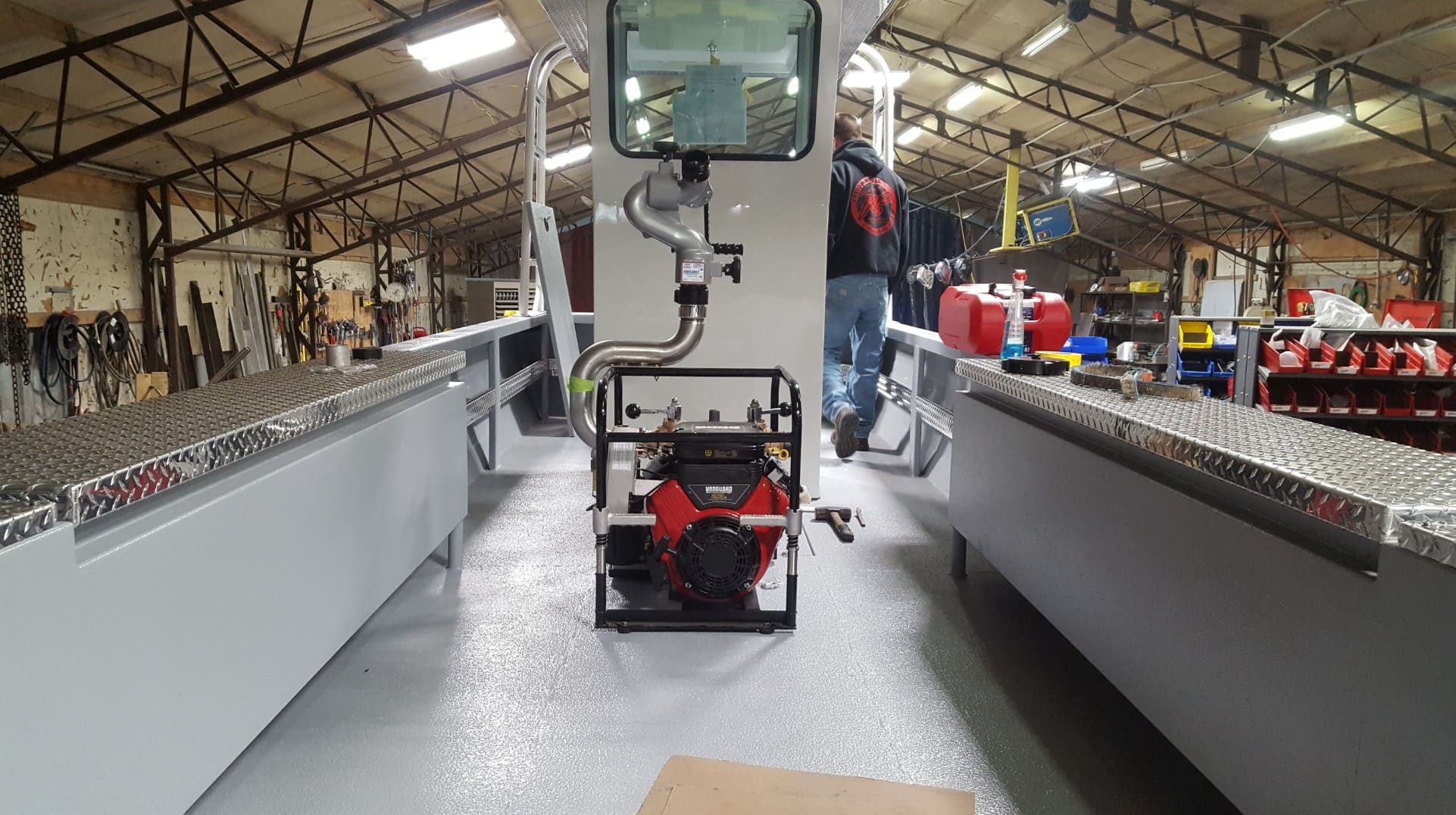

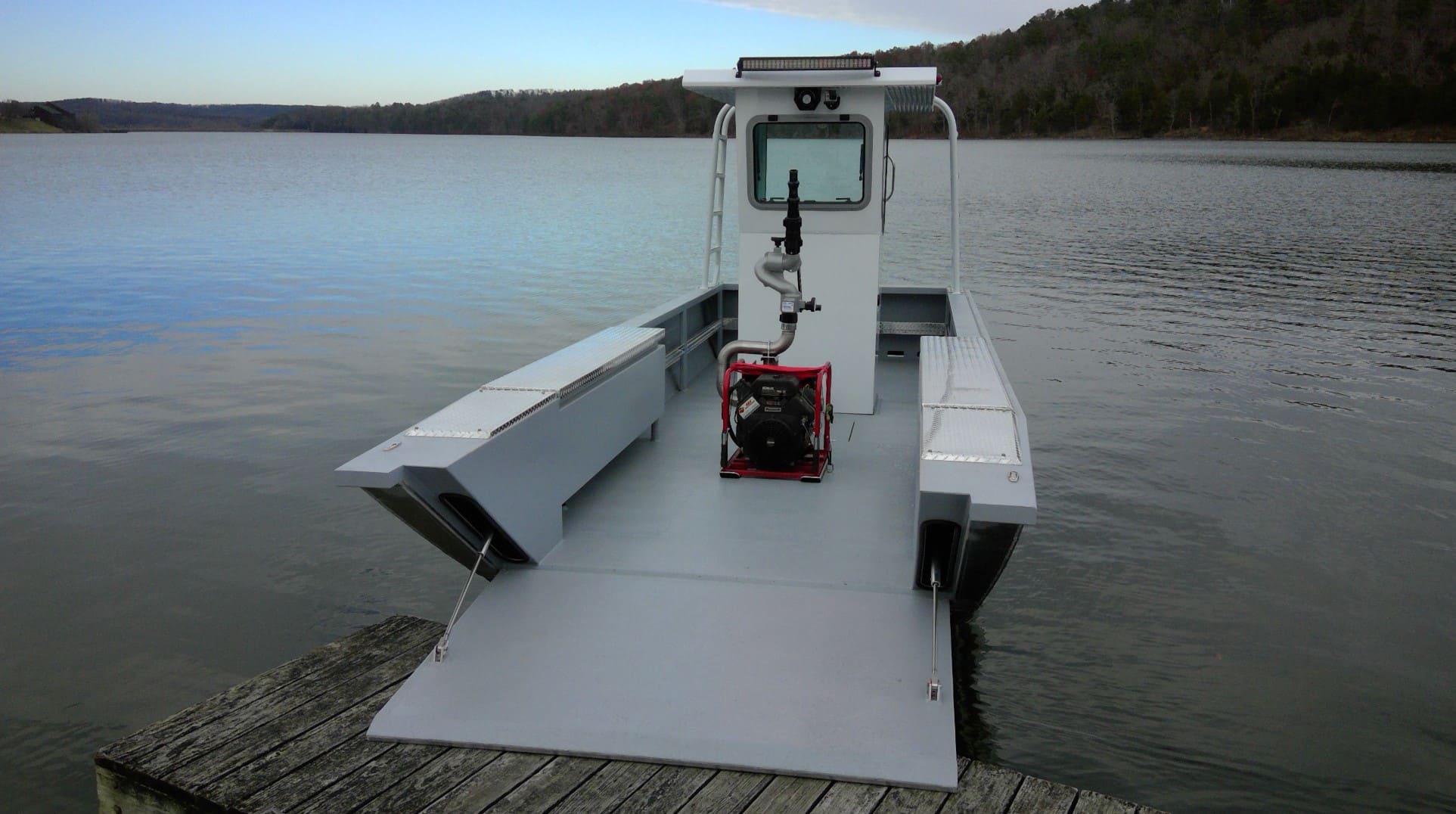

The 2472 OB Fire Boat LC is specifically designed for smaller departments that require flexibility and adaptability in their firefighting operations. This boat offers exceptional versatility, with a removable deck gun and pump system that allows for full access to the entire front deck, providing a clear and open space when not in use. The boat’s layout maximizes functionality, allowing quick deployment of firefighting equipment, while the easily removable deck gun ensures you can tailor the setup to meet the needs of each operation.

Contact Us

To learn more about specifications, available configurations, and pricing, contact the official dealer via the link below or click on the logo.

boat specs

Overall Length:

24′6′′

Beam:

90′′

Degree of Deadrise:

12°

Max HP:

300

Weight:

3350 lbs.

Approx. Fuel Capacity:

40 Gal.

Standard options:

  • Multi strake with reverse chine bottom system (25” x DIM)
  • Standard all-up hull working weight approx. 4000 lbs.
  • 4 lifting strakes on the bottom of the hull
  • Length over all (LOA) = 24’ 6" (includes motor well pod, no motor)
  • 90” beam width, 8” formed gunnel top (1 part)
  • 3 independent chambers: (1) front (bow section), (2) two outer rear sections
  • Sealed self-bailing work deck with rear scupper doors
  • (2) two full-length integrated tray / side braces / storage trays
  • Heavy duty hydraulic front gate with 1000 lb. capacity
  • 24” vertical side height from work deck
  • 0.125” pre-flex formed gunnel one part sides
  • 0.190” bottom thickness
  • Full-length side collision guard
  • Suzuki digital throttle, shift, and gauge monitoring system
  • Suzuki NEMA 2000 digital network
  • Suzuki independent dual battery bank charging system
  • 40 gallons below deck fuel tank
  • Tinted DOT 2 safety glass, forward opening front window
  • Flush mount controls
  • Tach, ignition, fuel, lanyard, neutral safety switch
  • Navigational & anchor lights
  • Dual 6-switch accessory panel with power point
  • Dual battery system with emergency parallel crossover
  • Sea Star hydraulic helm and steering wheel
  • Front deck: approx. 132” from front of helm tower to base of bow door
  • 75” wide between gunnels where there are no bow compartments
  • Heavy duty bow entry keel doubler plate (0.375” total thickness)
  • Heavy duty raised gunnel top

Available options:

  • Front and rear 8500 scene / warning flood bars [EA.]
  • Port and starboard 5500 scene / warning flood bars [EA.]
  • 4 linear SNM E4 red/blue [EA.]
  • Golight Stryker remote control spotlight [EA.]
  • 4” suction attachment mid ship for portable fire system

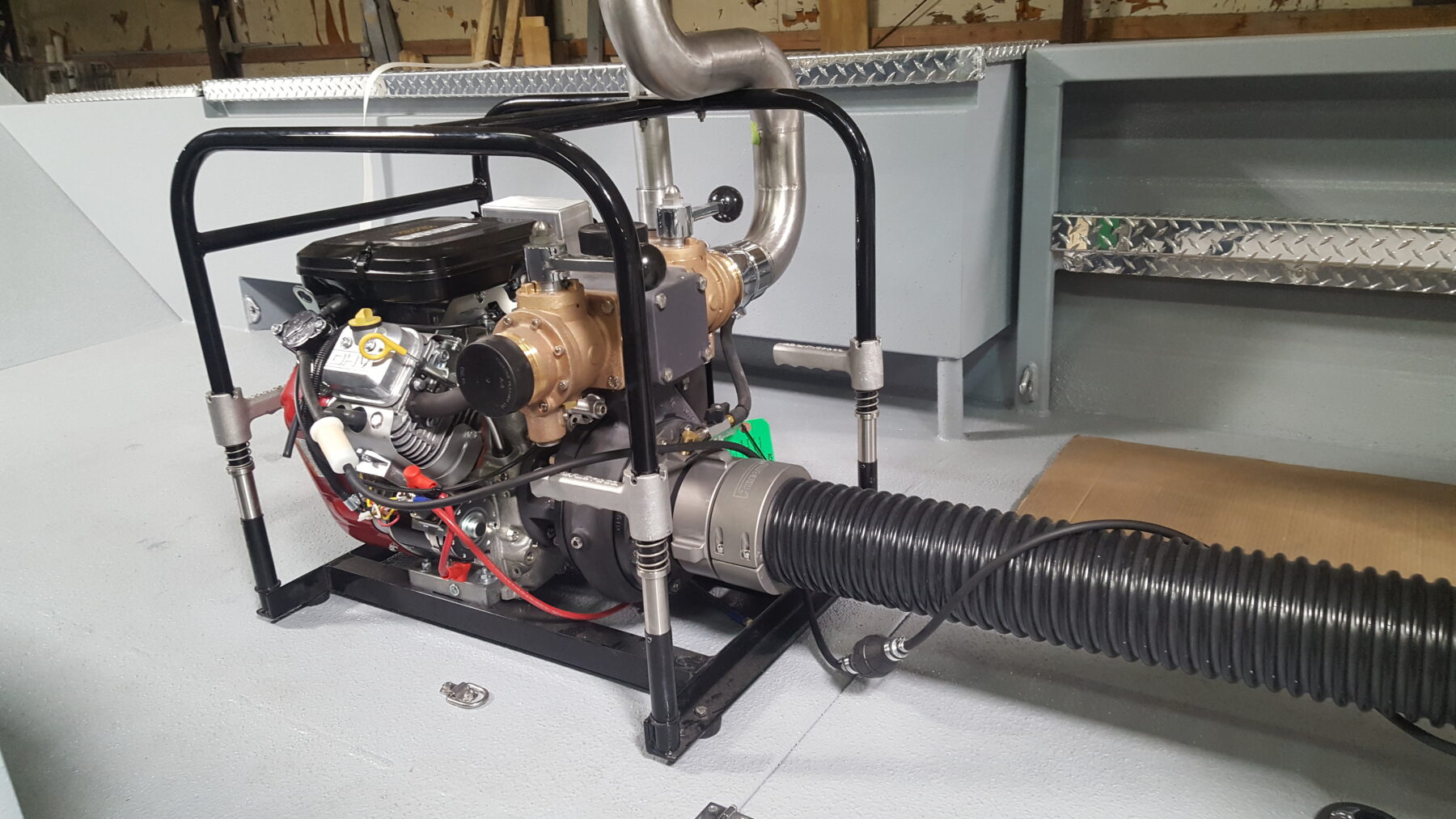

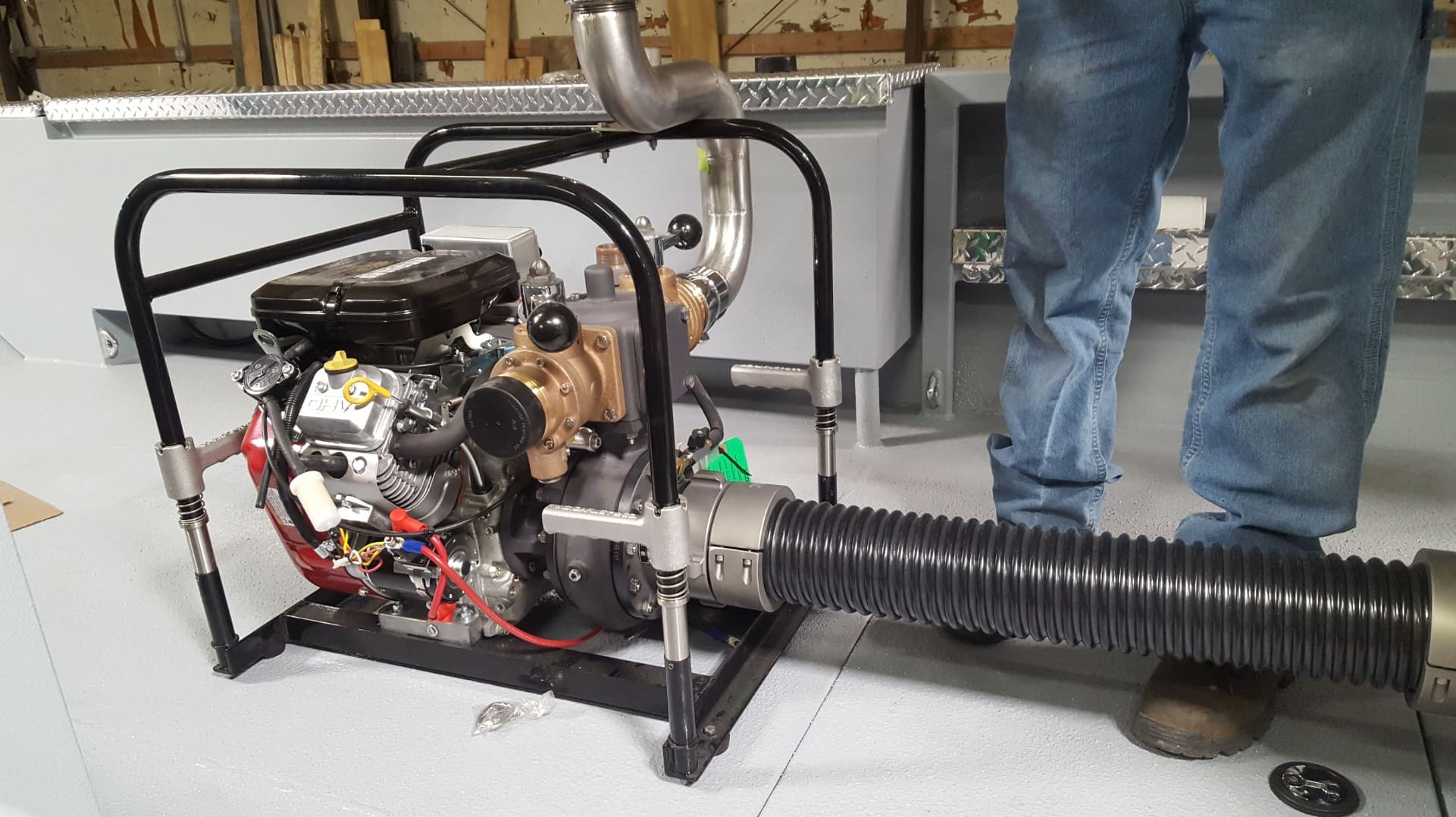

  • HE 23 HP Darley portable pump w/ exhaust primer & control panel

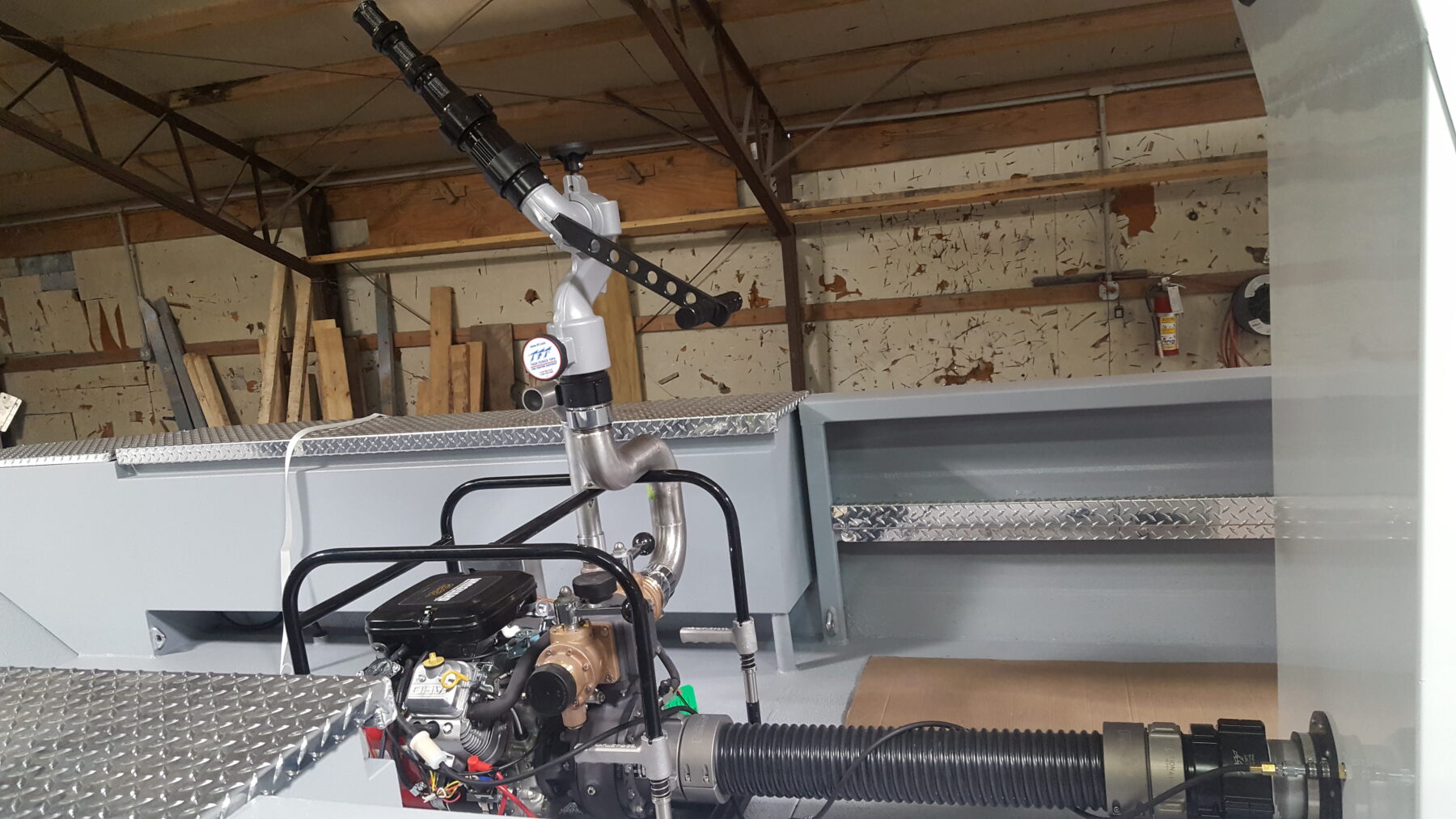

  • Tornado monitor, stream straightener, stacked tips
  • 5’ section Kochek 4” PVC hose w/ NST female swivel
  • Kochek 4” NPT rigid female x 4” NH male adapter
  • Kochek 4” NH cap
  • 2.5” stainless steel discharge manifold
  • 6” hydraulic jack plate
  • Wash down pump
  • Trailer break away tongue
  • Trailer galvanized
  • Single wiper with low/high and auto-park [EA.]
  • 2 banks on board smart charger
  • Pop-up cleats [EA.]
  • Custom color match paint (call with paint code)
